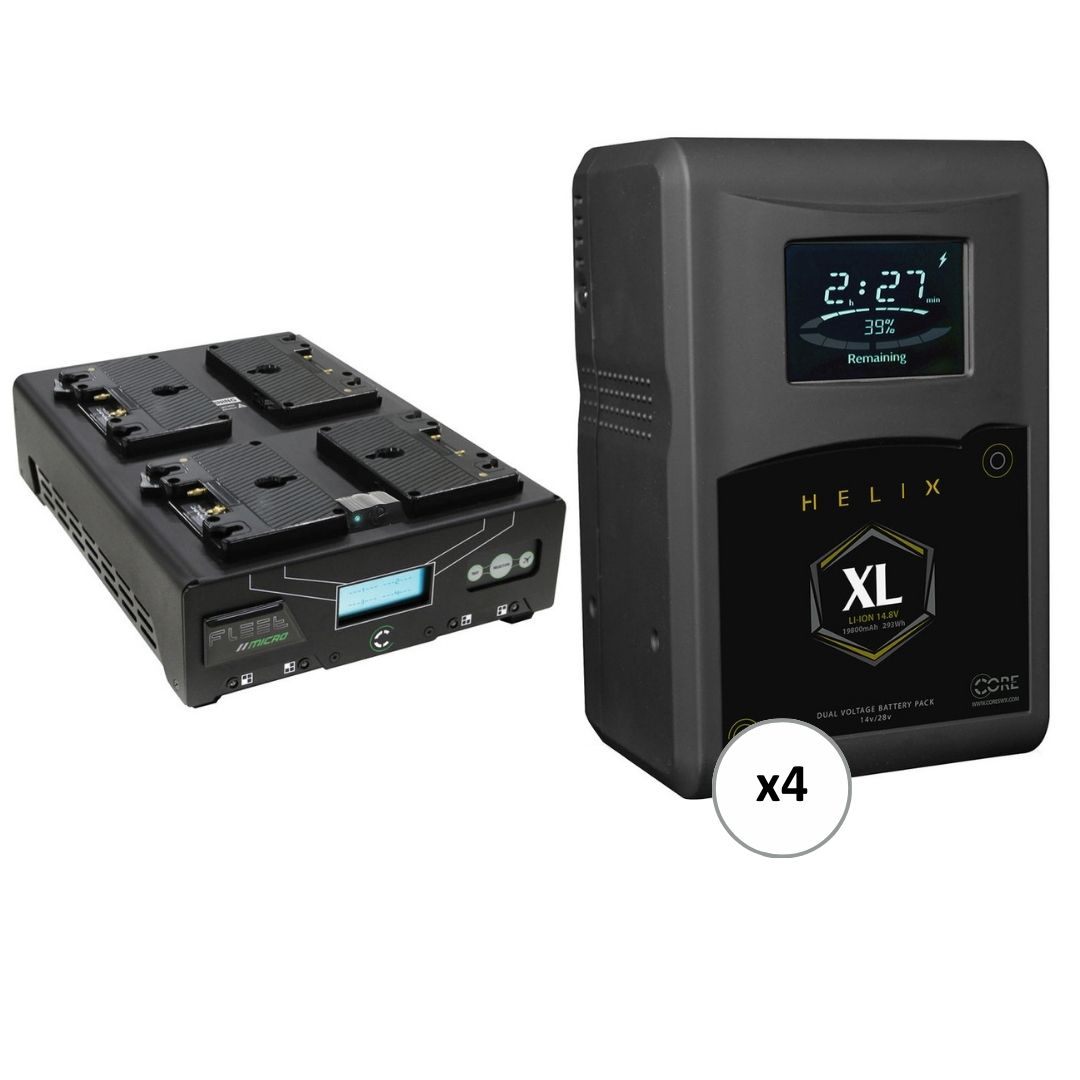

Core SWX Helix XL 293Wh Dual-Voltage Battery 4-battery kit w/ Quad Charger (Gold Mount)

Core SWX Helix XL 293Wh Dual-Voltage Battery 4-battery kit w/ Quad Charger (Gold Mount)

Kit includes: 4x Core SWX Helix XL 293Wh Dual-Voltage Battery 1x Core SWX VoltBridge Enabled Fleet Micro 3A Digital Quad Charger for Gold Mount Batteries

Place an Order

Core SWX Helix XL Overview

The Gold mount Helix XL 293Wh Dual-Voltage Battery from Core SWX is a professional battery designed for modern production workflows involving a wide range of equipment. The compact design means the battery takes up less space than previous-generation models to better fit gimbal stabilizers and other rigs where space is at a premium. Though the design is less space-consuming, the Helix XL provides the same 293Wh capacity as its predecessors. To support various equipment types from small accessories to larger cinema cameras and lights, the Helix XL supports a 19.8A, 14.8V continuous draw, and it also supports simultaneous dual-voltage output with a maximum load of 7.5A/10A peak at 28V and a maximum load of 15A/20A peak at 14V.



The Helix XL features a 12V D-Tap output that can be used to power a camera, light source, monitor, recorder, or other power-hungry equipment. The LCD battery status display screen on the rear of the battery is backlit with a cool white illumination, and updates every few seconds to accurately reflect up-to-the-moment statistics including the runtime. The battery also includes RFID which allows you to connect an RFID reader app to monitor battery information remotely. Another handy feature is the ability to charge or discharge to 30% for safe storage or air transport using Voltbridge technology.



The battery itself is housed in Core SWX's classic overmolded casing with a rubberized finish that is resistant to impact and is easily grippable.



Key Features

  • 293Wh lithium-ion Gold mount battery
  • Supports up to 19.8A continuous draw at 14.8V
  • Utilizes Panasonic cells
  • Dual-voltage output supports 15A/20A peak at 14V, and 7.5A/10A peak at 28V maximum load
  • Rated at 2000 charge/discharge cycles
  • Backlit LCD and 4-LED power gauge
  • Voltbridge RFID app support
  • One 12V D-Tap accessory output
  • Non-slip, rubberized housing
  • Storage/fly mode charge/discharge settings to 30%

Core SWX VoltBridge Enabled Fleet Micro 3A Digital Quad Charger for Gold Mount Batteries

Incorporating CoreSWX's VoltBridge technology for wireless managing of your fleet of batteries, the CoreSWX VoltBridge Enabled Fleet Micro 3A Digital Quad Charger for Gold Mount Batteries is capable of simultaneously charging four batteries at 3A each. This means that four 98Wh batteries can be charged in under 2.5 hours. The onboard LCD display screen allows you to easily monitor your battery's smart data without needing to connect to a computer. The micro-USB connector allows for firmware updates and for connection to a PC.



The built-in Battery Management Test mode allows the charger to determine battery health and recharge performance. Activating the SafeFly mode forces the charger to discharge or charge connected batteries to a 30% charge level to meet air travel and shipping requirements. While plugged into an AC power source, the charger can either charge batteries or be used as a camera power supply via the built-in 4-pin XLR. In the absence of AC power, you can use the charger to feed the 4-pin XLR from connected batteries providing unregulated power. The housing is made of aluminum, providing a robust build.



Key Features

  • The charger incorporates VoltBridge technology which enables you to remotely view your attached batteries status via a mobile device app; the app also allows you to have the charger put your attached batteries into SafeFly mode
  • Accessing the chargers control panel provides the same management capabilities as the VoltBridge app, without the same convenience
  • Four independent Gold mount charge bays
  • Simultaneous charging
  • Approximately 2.5-hour charge time for four 98Wh batteries
  • When SafeFly mode is activated, the charger will either discharge your battery down to 30% of capacity or charge it up to 30%, depending on the charge state of the battery
  • 90 to 240 VAC worldwide compatible input voltage
  • Compatible with batteries from RED, Anton Bauer, and others in addition to CoreSWX
  • The four-line LCD display screen enables monitoring battery information from the charger
  • Hypercine mode allows you to mount up to four batteries to provide unregulated 12 to 16.8 VDC from the charger's 4-pin XLR, without connecting to an AC power supply
  • In Hypercine mode, the charger's LCD reports back available capacity as well as remaining runtime
  • Aluminum build
  • Weighs 5 pounds
  • An optional "Hypercine Module" (not included) enables the charger to provide both unregulated 12 to 16.8 VDC and regulated 28 VDC via a 3-pin XLR output
