Interchangeable Lenses, Complete RGB Color Control, and Battery or AC Power

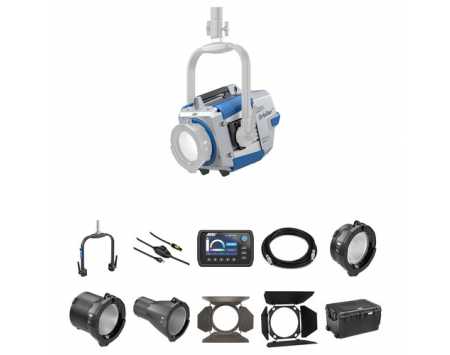

The ARRI Orbiter LED Light is part of a tunable light system with a powerful color engine and versatile, changeable optics. ARRI's 190-LED Spectra system features a wide range of color features allowing you to create an enormous range of colors with its six-color light engine, The light runs on universal 100 to 260V but it will also run on 48V batteries when AC power is unavailable.
Wide CCT Color Range
Featuring a high CRI of 98 and a TLCI of 95, the Orbiter offers a 2000 to 20,000K color temperature range to match just about any lighting situation, and it also features 100 to 0% dimming with smooth, continuous adjustment.
Powerful Color Performance
Inside each Orbiter is the Spectra light engine with a processor four times faster than ARRI's SkyPanel series and 125 times the memory, with plenty of room for future function updates. To produce extra-fine full-color tuning, the light engine adds amber, cyan, and lime to the standard red, green, and blue LED colors in its 190-LED array. Capable of creating hard shadows with defined edges, the Orbiter's engine is 76 times smaller than an ARRI L10 Fresnel but has a greater output while drawing the same amount of power.
Orbiter Options
Orbiter models include an Optic-Free version, small, medium, and large domes, 15, 30, and 60° Open Face, and 15, 25, and 35° Projection versions. ARRI offers a range of open-face and projection optics (lens housings), domes, softboxes, snoots, and barndoors. The interchangeable optics quickly and easily attach to the front of the light using the new QLM (quick lighting mount) system, which functions like a giant camera lens mount.
Optics Auto Adjust in LiOS2 (Light Operating System)
The Optics Auto Adjust Mode in Orbiter's LiOS2 offers 100% color stability with any optic and any focus. The updated LiOS2 features eight color modes such as CCT, HSO, RGBACL, Gel Select, X/Y coordinates, source matching, effects, and a custom mode that allows you to save over 240 favorites that can be applied to a DMX system or interface. It also has three operational modes including high color rendering, high output, and low noise for your preferred performance. Interfaces include 5-pin DMX in and out, two LAN ports, two USB-A ports, a USB-C port, and an SD slot for future upgrades. It also features a sync input for future applications that will sync with your camera. Utilizing the accessory recognition of Orbiter's innovative QLM (Quick Lighting Mount), the ARRI Spectra light engine is modified to maintain maximum color stability, no matter what configuration is used. This includes textiles such as softboxes or domes, a reflector in the Open Face version, or lenses such as the recently introduced Orbiter Fresnel lens.
LiOS2 Sync and Cue Mode
Time matters in every production, and with LiOS2 Sync Mode, light output can be triggered when and how the camera needs it. This LiOS2 automation is designed to free up the crew for real teamwork. Cue the lights when the camera needs them. Exact timing is key for capturing dynamic images, and Cue Mode enables precise lighting control right on the spot. Every operator can set the key lighting parameter right on time and with precision.
Full Suite of Sensors
The Orbiter has an integrated suite of sensors. An ambient color sensor recreates shifts in both color and intensity in your surroundings and features two modes - continuous and momentary. Use the momentary sensor to get an instant measurement of your light levels, or switch to Continuous Mode for unceasing adapting to changing light in an event space, etc. Its 3-axis accelerometer senses the Orbiter's pan, tilt, and roll, and that metadata can be used in future applications for placement optimization and effects production. It also includes a magnetometer that offers true global direction, an ambient light sensor that will automatically dim your optional control panel's display, and a heat sensor that ensures safe operation at any temperature.
Durable Build
The Orbiter has an estimated LED lifetime of 50,000 hours. It consumes a nominal 400W and a maximum of 500W, while the yoke has a Junior pin. The Orbiter features an aluminum build with a +/- 90° quick release yoke, a powerful tilt lock, and manual operation. A full suite of connectors includes DMX in, DMX out, two LAN, one USB-A 1.5A, one USB-A 0.5A, one USB-C 1.5A port, and an SD card slot.
ARRI Manual Yoke with Spigot for Orbiter
The Manual Yoke with Spigot for Orbiter from ARRI replaces the light's pole-operated yoke or provides one for Orbiters purchased without a yoke. Panning and tilting are done manually on the fixture. The yoke has a spigot for mounting onto a stand or clamp.
ARRI Power Cord with Switch for L-Series Fresnels (23')
This 23' long Power Cord with Switch for L-Series Fresnels from ARRI provides mains power to the L5, L7, and L10 series LED fresnel lights. It features a powerCon True 1 connector and a heavy-duty inline power switch.
ARRI All-Weather Control Panel
Designed for maximum flexibility, the All-Weather Control Panel from ARRI is a robust IP66-rated device that allows you to adjust the functions of the SkyPanel X. The control panel has an onboard screen, quick navigation buttons, and can be separated from the fixture and used remotely via an optional 16.4' or 49.2' cable. This is a great tool for centralized control, allowing you to easily change settings and create presets on the fly.
General Features
This 6.1 x 4.0 x 1.3" control panel works as an onboard display thanks to X21's dedicated bay. It is also a handy remote device when the lamphead is reachable via its LEMO connector.
Widely Compatible
The control panel runs on ARRI's LiOS proprietary software and is compatible with other ARRI fixtures such as the Orbiter.
ARRI Cable for Orbiter Control Panel (16.4')
Ideal for hanging fixtures or lights mounted on tall stands, this 16.4' ARRI Cable for Orbiter Control Panel connects the removable panel to the light to control its functions.
ARRI Open Face Optic for Orbiter LED Light (60-Degree)
The 60-Degree Open Face Optic for Orbiter LED Light narrows the 80-degree beam spread of the fixture to allow selective lighting or long throw work. Thanks to ARRI's QLM bayonet mounting system, the lenses attach and can be swapped out in a flash.
ARRI Open Face Optic for Orbiter LED Light (30-Degree)
The 30-Degree Open Face Optic for Orbiter LED Light narrows the 80-degree beam spread of the fixture to allow selective lighting or long throw work. Thanks to ARRI's QLM bayonet mounting system, the lenses attach and can be swapped out in a flash.
ARRI Open Face Optic for Orbiter LED Light (15-Degree)
The 15-Degree Open Face Optic for Orbiter LED Light narrows the 80-degree beam spread of the fixture to allow selective lighting or long throw work. Thanks to ARRI's QLM bayonet mounting system, the lenses attach and can be swapped out in a flash.
ARRI 4-Leaf Barndoor Set for 650W Fresnel, 200W HMI, 400W Pocket PAR
This is an ARRI 4-Leaf Barndoor Set for the 650W Fresnel, 200W HMI, 400W Pocket PAR, and Pocket Lite. Barndoors attach to the front of a light and are used to restrict light from areas of a set. They have either four or eight leaves that can be adjusted. ARRI barndoors are heat resistant and rotatable.
ARRI 4-Leaf Barndoor Set for ST-1, 1.2Kw HMI Fixtures
This is an ARRI 4-Leaf Barndoor Set for the ST-1 Fresnel and 1.2Kw HMI fixtures. Barndoors attach to the front of a light and are used to restrict light from areas of a set. ARRI barndoors are heat resistant and rotatable.
ARRI Hard Case for Orbiter Basic Version plus Control Panel and Cable
Store, transport, and protect your Orbiter Basic Version plus the control panel and cable with this Hard Case from ARRI.
ARRI Soft Bag for Orbiter Open Face Optics
Store, transport, and protect your Orbiter Open Face Optics with this Soft Bag from ARRI.
